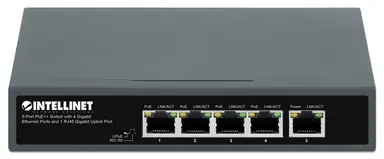

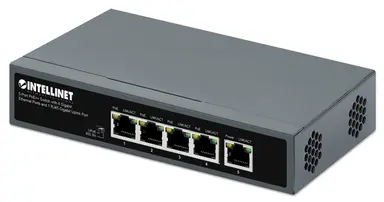

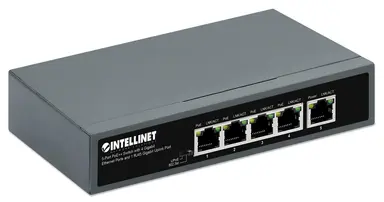

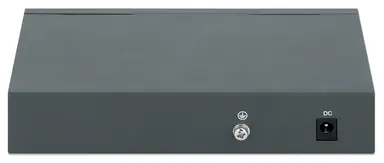

Name: 5-PORT POE++ Switch with 4 Gigabit Ethernet Ports and 1 RJ45 Gigabit Uplink Port
Brand: INTELLINET
SKU: 562010
Price: 210.74 USD

Availability confirmed at order time

PIE donates on every purchase

30-day returns

Secure checkout

Product overview

Intellinet 562010. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 55 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

5-PORT POE++ Switch with 4 Gigabit Ethernet Ports and 1 RJ45 Gigabit Uplink Port

$210.74

Add to cart

Single-unit price, before taxes and shipping.

PIE Price Promise · we beat authorized resellers by 3%

PIE donates $11.29 to your chosen nonprofit

When you buy this - on PIE, not on you.

Price breakdown

Your priceWhat you pay

$210.74

PIE donationTo your charity per unit - on PIE

$11.29

PIE donates $11.29 of its own margin to your chosen nonprofit on every unit - at no extra cost to you.

Government & Public-Sector Info

ℹ️ For nonprofit + public-sector procurement

Warranty period

3 year(s)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5e
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-sensing: Yes
Auto-negotiation: Yes

Data transmission

MAC address table: 2000 entries
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 1 MB

Design

Rack mounting: No
Product color: Black
LED indicators: Activity, Link, PoE, Power
Wall mountable: Yes

Performance

Fanless: Yes
Mean time between failures (MTBF): 50000 h

Power

Power source: DC/PoE
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 55 V
Power consumption (max): 150 W
Power protection features: Over voltage, Overload, Short circuit, Surge protection

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet 4PPoE (PoE++) ports quantity: 4
Total Power over Ethernet (PoE) budget: 140 W

Other features

Warranty period: 3 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 6.61" (168 mm)
Depth: 3.7" (94 mm)
Height: 1.26" (32 mm)
Weight: 13.9 oz (395 g)

Packaging content

Cables included: AC
Manual: Yes

Packaging data

Package width: 8.9" (226 mm)
Package depth: 9.45" (240 mm)
Package height: 3.31" (84 mm)
Package weight: 3.2 lbs (1.45 kg)

Certificates

Certification: FCC, CE, RoHS, UKCA, NDAA

Logistics data

Master (outer) case width: 10" (254 mm)
Master (outer) case length: 17.6" (446 mm)
Master (outer) case height: 19.1" (486 mm)
Master (outer) case weight: 33.5 lbs (15.2 kg)
Quantity per master (outer) case: 10 pc(s)
